Injektionsmaskiner

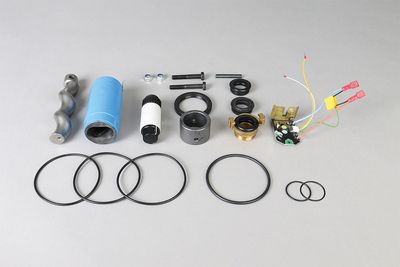

Spare and wear part set

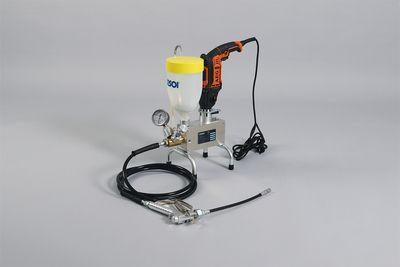

DESOI PowerInject SP20

pressure gauge unit with manometer 0 - 250 bar, whip, mouth piece

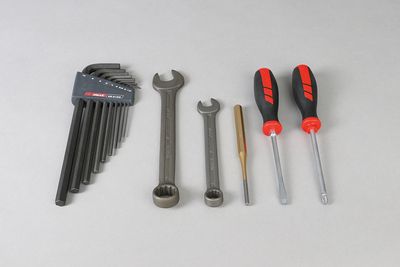

Set of tools
DESOI PowerInject SP20/110V

pressure gauge unit with manometer 0 - 250 bar, whip, mouth piece

distance tube 0.2 m, mouth piece

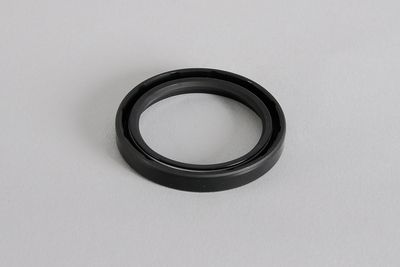

Shaft seal ring 45-60-8

rotary seal with dust lip

brass, external thread, operational pressure up to 25 bar

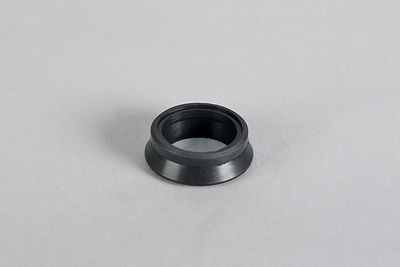

Seal for Geka-Coupling

manometer 0 - 160 bar, 6 litre material container transparent with scale and cover, incl. instruction manual, No. 16802: HP hose - steel Ø 6 mm, 3 m, union nuts M12x1.5 (solvent resistant), No. 16806: HP ball valve (R1/4", external thread M12x1.5, mouth piece)

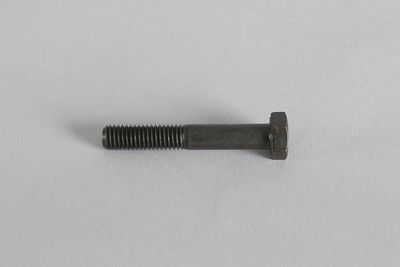

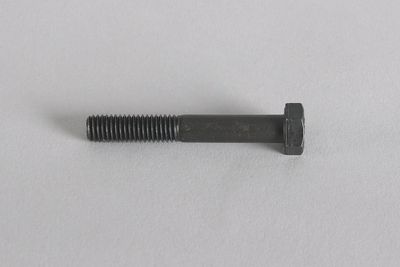

Hexagon screw
M8 x 50 mm, AF13

pressure gauge unit with manometer 0 - 250 bar, 6 litre material container transparent with scale and cover, incl. instruction manual, No. 16802: HP hose - steel Ø 6 mm, 3 m, union nuts M12x1.5 (solvent resistant), No. 16806: HP ball valve (R1/4", external thread M12x1.5, mouth piece)

Hexagon screw
M8 x 55 mm, AF13

drive, pressure control with return and pressure gauge unit with manometer 0 - 250 bar, 2 litre material container transparent, incl. instruction manual, No. 16802: HP hose - steel Ø 6 mm, 3 m, union nuts M12x1.5 (solvent resistant), No. 16733: HP injection gun (external thread M12x1.5, whip 0.3 m, 0 - 250 bar, mouth piece)

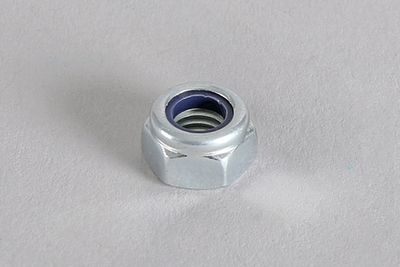

Hexagon nut
M8, AF13, self-locking

frame, 6 l material container transparent with scale and cover, incl. instruction manual, No. 16803: HP hose - steel Ø 6 mm, 5 m, union nuts M12x1.5 (solvent resistant), No. 16733: HP injection gun (external thread M12x1.5, whip 0.3 m, 0 - 250 bar, mouth piece)

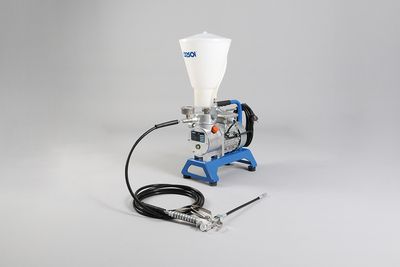

DESOI PowerInject 303

manometer 0 - 250 bar, 6 litre material container transparent with scale and cover, incl. instruction manual, No. 16803: HP hose - steel Ø 6 mm, 5 m, union nuts M12x1.5 (solvent resistant), No. 16733: HP injection gun (external thread M12x1.5, whip 0.3 m, 0 - 250 bar, mouth piece)

Page

12 3 4

Funktionsprincipper

Membranpumpe

Membranpumpen er en pumpe, der enten er mekanisk, hydraulisk eller pneumatisk. Gennem membranens konveksitet (ved sugning) fyldes pumpekammeret i membranen med injektionsmateriale, der transporteres videre vha. pumperne. Fordelen er, at injektionsmaterialet adskilles fra drevet, det definerede tryk kan opnås og materialet behandles skånsomt under transporten.

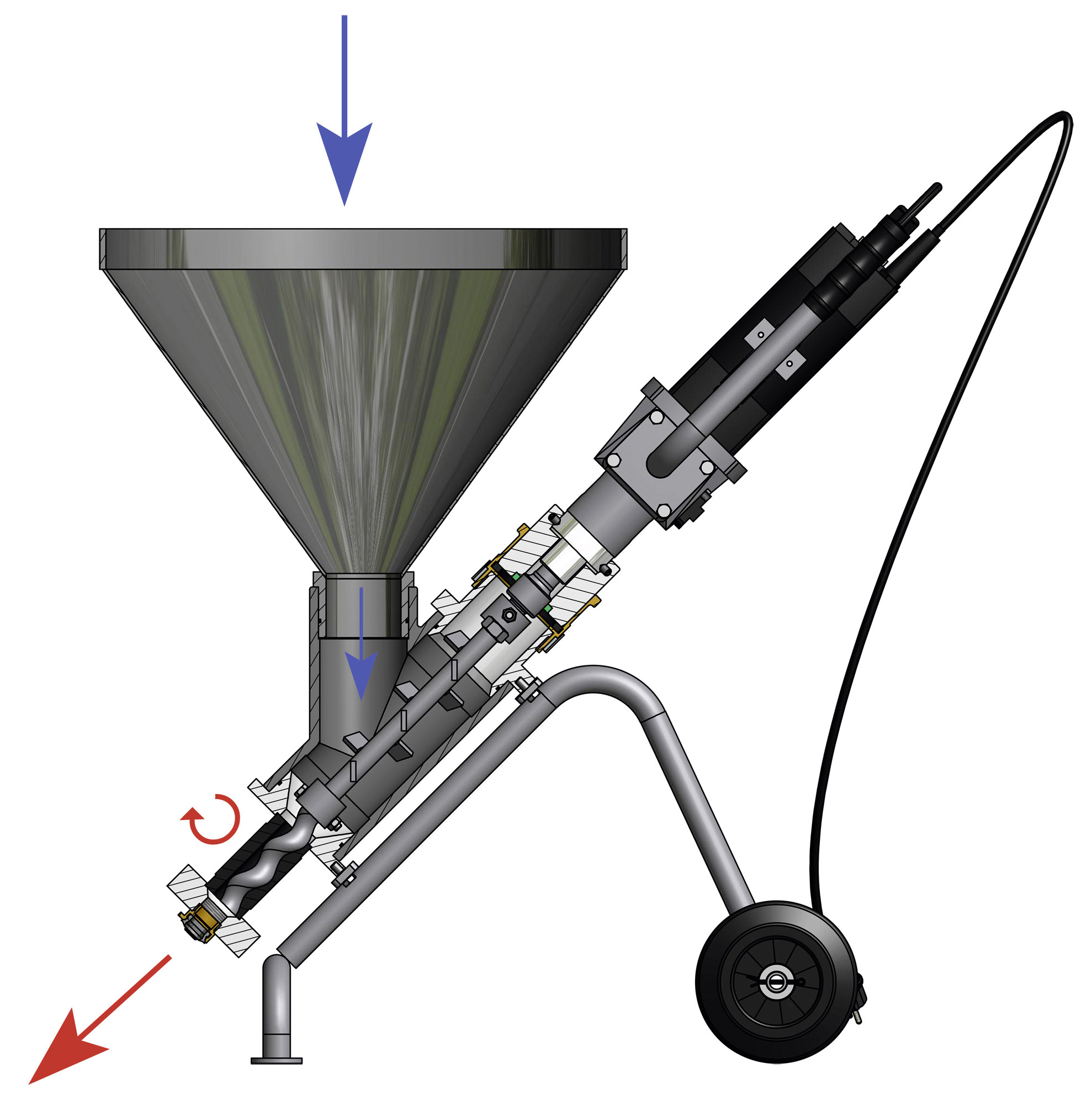

Skruepumpe

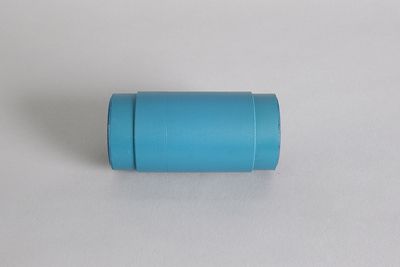

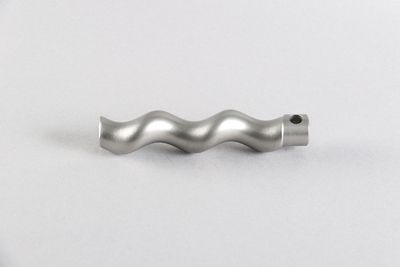

Funktionen af skruepumpen er baseret på princippet fra Arkimedesskruen. Skruen er placeret i et nøje tilpasset rør og kan rotere omkring sin midterakse. Transportelementerne er den roterende rotor og den faste stator. Disse to elementer danner kamre, som takket være skruens rotation bevæger sig gennem skruen mod dens ende.

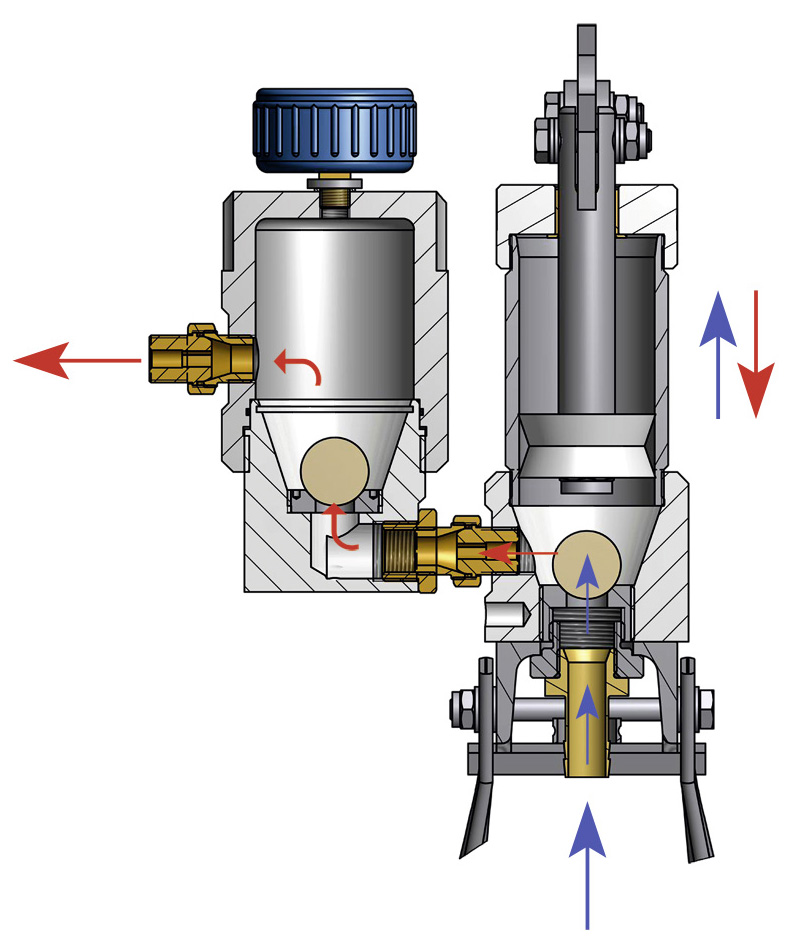

Stempelpumpe

Stempelpumper kommer som injektionsenheder, der drives via håndtag, fodpedal, elektricitet eller pneumatik. De kan opnå høje tryk, som kan indstilles nøjagtigt og kontrolleres via manometer.
